Four beats six: Why the M3 E30 never got a six-cylinder

The first BMW M3 broke with an expectation that remains firmly part of the brand to this day: under its angular bonnet worked no silky-smooth straight-six, but a raw, high-revving four-cylinder. This was neither a cost-cutting measure nor a stopgap solution. The S14 was created because BMW Motorsport did not want to build a particularly fast 3 Series for the road, but the most successful possible touring car that also happened to have road homologation.

When people think of the BMW E30, they often hear a six-cylinder first. In particular, the 325i introduced in 1985, with its 2.5-litre M20B25, shaped the image of the sporty 3 Series: cultivated running, characteristic sound and confident power delivery. At 171 PS, it was the flagship model of the regular model line at the time. So why didn’t BMW Motorsport simply use this well-known and prestigious engine for the new M3?⁵

The short answer is: because the M3 had a different job to do. The M20 had been developed for a fast, cultivated road car. The M3’s engine, by contrast, had to function above all as the basis for a high-revving, light and durable racing engine. Under this brief, the four-cylinder beat the six-cylinder.

Racing car first, road car second

With the E30 M3, the usual development logic ran, in a sense, backwards. It was not an existing production sedan that was subsequently sharpened for motorsport. Rather, BMW Motorsport designed a competition touring car and derived the necessary road model from it.¹

The reason for this was Group A. The regulations required a minimum of 5,000 road-registered examples within twelve consecutive months for a vehicle’s homologation. What later stood at the dealership therefore had to form the technical basis of the racing car. Accordingly, BMW intervened deeply in the design of the E30: body, aerodynamics, axles, brakes and drivetrain were all tailored to competition use. According to BMW Motorsport’s own account, barely more than the roof and doors were carried over from the mass-produced 3 Series.²

This meant the engine question was not a debate about sound, smoothness or the prestige of cylinder count. It was a sober decision about weight, rev durability and development potential.

The coreThe M3 was not an upgraded 3 Series, but a racing car with road homologation. The choice of engine therefore followed not taste, but the regulations.

Why four cylinders had the advantage in motorsport

Less mass on the front axle

An inline four-cylinder is shorter and lighter than a comparably constructed straight-six. In the front-engined E30, this meant less mass at the front of the car and a more compact drivetrain unit. Both helped turn-in behaviour, reduced rotational inertia around the vertical axis, and supported the agility that later became a hallmark of the M3.

This advantage should not be reduced to the simple formula “four cylinders are always better than six”. What matters is the intended use. For comfort, smoothness and elastic power delivery, a straight-six has great qualities. In homologation-driven touring car construction, however, every kilogram counts — especially when it sits ahead of the passenger cell and thus far from the vehicle’s centre of gravity.

The shorter crankshaft tolerated higher revs

Even more important was the crankshaft. BMW explicitly justified the decision at the time by noting that the six-cylinder’s longer shaft tended toward vibration sooner as revs increased. The four-cylinder’s shorter crankshaft could be designed with greater torsional stiffness. According to BMW, the S14’s crank assembly was dimensioned for speeds of 10,000/min and more.⁴

This did not mean the production M3 actually revved to 10,000/min. Its rated output arrived at 6,750/min. But the design reserve was worth its weight in gold for motorsport: even the first 2.3-litre racing version produced up to 300 PS at 8,200/min, while the road car offered 200 PS. High revs allowed high output from limited displacement without relying on a turbocharger.

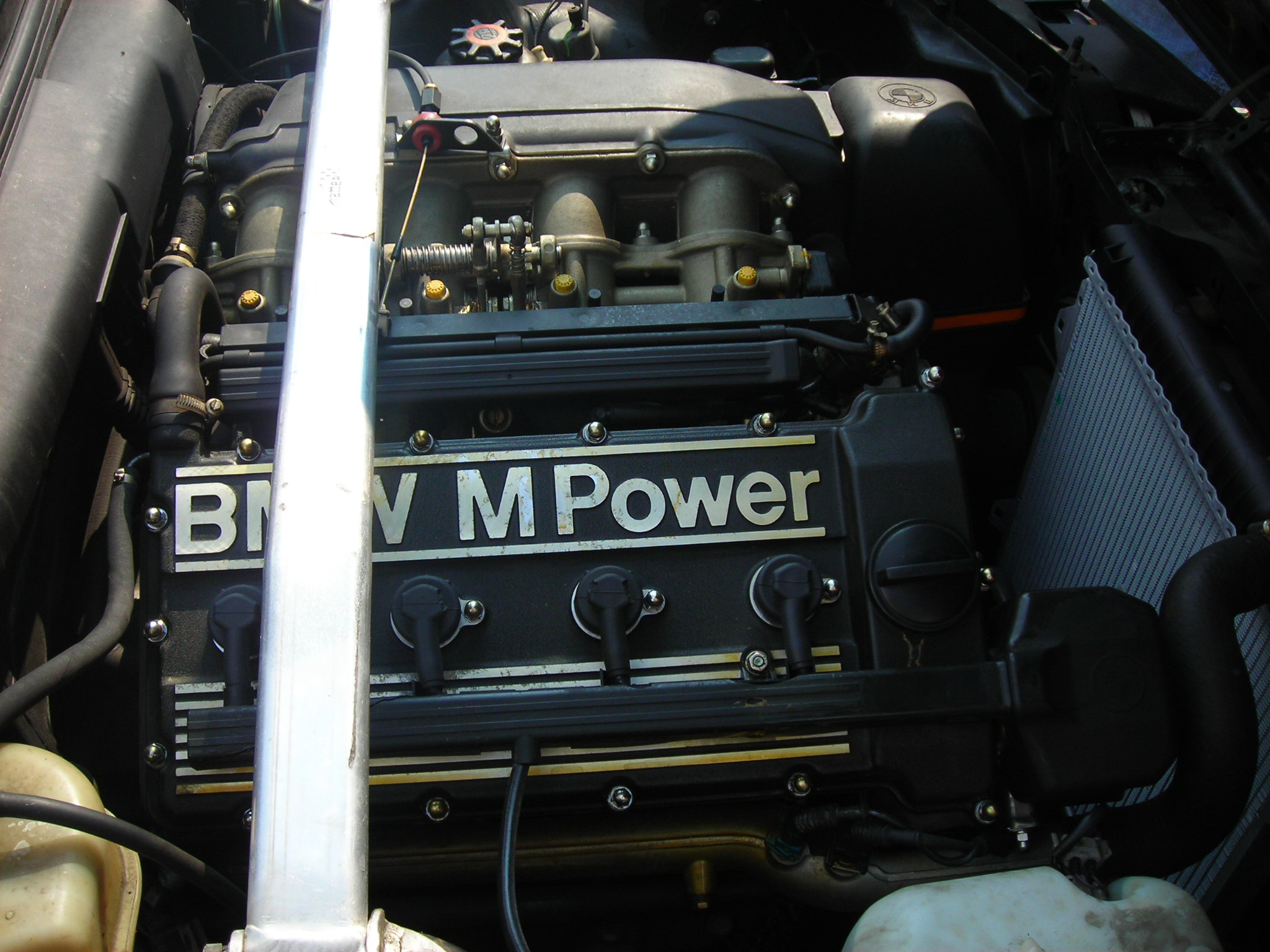

Motorraum eines BMW M3 E30 mit S14-Vierzylinder und Ventildeckel mit der Aufschrift BMW M Power — The S14B23 in the engine bay of an M3 E30 — two overhead camshafts, four valves per cylinder, individual throttle bodies · Photo: Beemwej, CC BY-SA 3.0, via Wikimedia Commons

Large bore, four valves and free gas flow

With a bore of 93.4 millimetres and a stroke of 84 millimetres, the S14B23 was designed as a short-stroke engine. The large bore created room for four valves per cylinder; the comparatively short stroke kept mean piston speed in check at high revs. Two overhead camshafts and individual throttle bodies ensured direct gas exchange and immediate throttle response.

For a racing engine, this combination is especially attractive: a large valve cross-section supports cylinder filling at high revs, the individual throttles shorten the path from driver input to load change, and the compact crank assembly remains manageable. The S14 was therefore not just lighter than a six-cylinder alternative — its entire concept suited the targeted specific output better.

Room to grow up to 2.5 litres

The four-cylinder also proved to be the right choice as a basis for evolution. From an initial 2,302 cm³, displacement grew to 2,467 cm³ in the M3 Sport Evolution. The road version thus reached 238 PS. The changes served not only to sell a more powerful special model, but also to homologate further development for competition. The S14 could therefore grow within the relevant displacement bracket without giving up its fundamental advantages.³

The engine base: M10 below, M88 idea above

The origin of the S14 is often explained with a catchy phrase: M10 block plus a sawn-off M1 cylinder head. That captures the family history, but is technically in need of clarification.

The structural basis of the crankcase lay in BMW’s long-lived M10 four-cylinder family, or more specifically in the two-litre production four-cylinder of the time. This cast-iron base architecture had proven its robustness over decades and had long since found its way into motorsport. Extreme racing engines had also emerged from the same engine family — up to and including the turbocharged BMW Formula 1 engine M12/13. The S14 was therefore not a throttled-back Formula 1 engine, but it did benefit from an exceptionally proven underlying concept.

For the cylinder head, Paul Rosche’s team drew on the four-valve technology of the M88 straight-six from the BMW M1. The shared cylinder spacing made it possible to transfer the combustion chamber and port geometry to four cylinders. Rosche later described the process vividly, saying that two combustion chambers had been “cut off” from the M88 head and the back sealed. What is meant is the design derivation: the S14 received its own standalone four-cylinder head, whose architecture was closely related to the M88 — not a production M1 head literally sawn to size.⁴

It was precisely this combination that made the S14 special: a proven, rigid cast-iron lower section from BMW’s great four-cylinder tradition, topped with a modern light-alloy four-valve head based on the principle of the M1 engine. According to tradition, the new engine was created as a first prototype in just 14 days. A considerably longer development process naturally followed before it reached production readiness.

Where the name of this site comes fromThis exact connection — four-cylinder block below, six-cylinder thinking above — is the reason why s14.de is called that. More on this can be found under About us.

M20B25 and S14B23: two engines, two briefs

The comparison shows why the decision should not be read as a devaluation of the M20. With 2.5 litres of displacement, the M20B25 was cultivated and powerful for its time. However, its single camshaft and twelve valves were designed for a different rev range and comfort window. Converting it for the targeted racing output would not only have required a new cylinder head. BMW would still have had to accept the longer crankshaft, more demanding at very high revs, as well as additional weight at the front of the car.

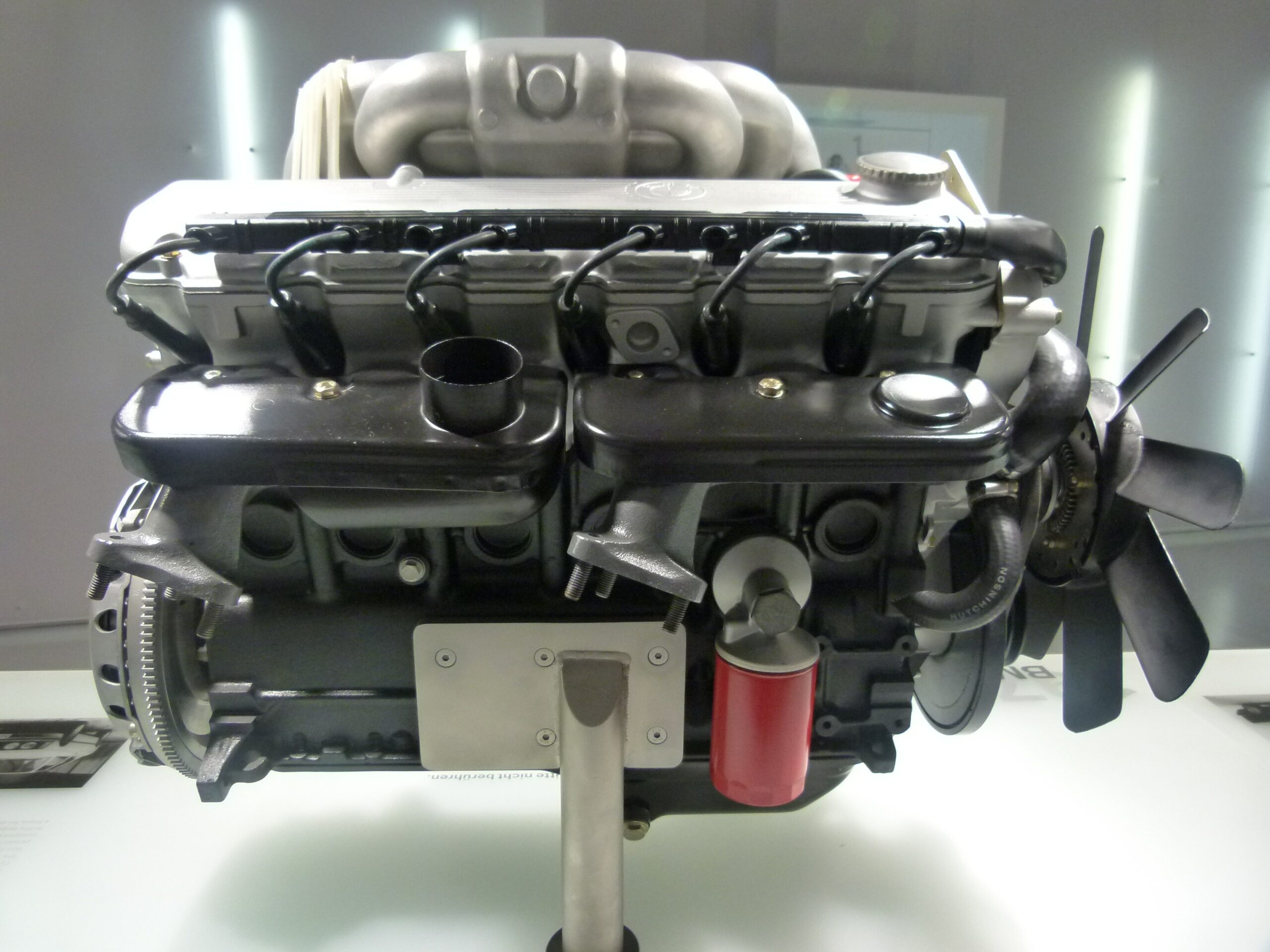

Freistehender BMW M20 Reihensechszylinder auf einem Ausstellungssockel im BMW Museum — The M20 on display at the BMW Museum — a single overhead camshaft, twelve valves, longer crankshaft · Photo: Tor635, CC BY-SA 3.0, via Wikimedia Commons

Feature	M20B25 in the E30 325i	S14B23 in the E30 M3
Design	Straight-six	Inline four-cylinder
Displacement	2,494 cm³	2,302 cm³
Valve gear	one overhead camshaft, 2 valves per cylinder	two overhead camshafts, 4 valves per cylinder
Output at launch	171 PS at 5,800/min	200 PS at 6,750/min
Character	cultivated, elastic, road-oriented	eager to rev, direct, competition-oriented
Main purpose	Flagship engine of the mass-production line	Homologation basis for Group A

European versions at the time of launch.

Even in road-going form, the S14 offered 29 PS more than the contemporary 325i without catalytic converter, despite its smaller displacement. On the racetrack, output of the 2.3-litre version grew to around 300 PS. Its strength, however, lay not solely in the number on the test bench, but in the overall package: low mass, compact dimensions, high rev durability, sharp gas exchange and enough reserves for several evolution stages.

Four beats six — but only because the racetrack dealt the cards

The straight-six belongs to BMW as much as the kidney grille belongs to the front. Precisely for this reason, the four-cylinder in the first M3 still feels like a break with the rules today. In fact, it was the opposite: the most consistent implementation of the rules under which the E30 M3 was to compete.

The M20 would probably have made the M3 more cultivated, more sonorous and smoother in everyday use. The S14 made it the better homologation car. Its lower mass relieved the front of the car, the short crankshaft created rev reserves, and the combination of M10-based four-cylinder base architecture with M88-inspired four-valve technology delivered a resilient foundation for competition.

This also explains the character of the first M3: it was not the most luxurious or the most melodious E30, but the most uncompromising. The four-cylinder was not a sacrifice of two cylinders. It was the technical prerequisite that allowed the E30 to become one of the most successful touring cars of its era.

Technical specifications of the S14B23

2,302 cm³ displacement
93.4 mm bore × 84.0 mm stroke
Inline four-cylinder with cast-iron block and light-alloy cylinder head
two overhead camshafts, four valves per cylinder
electronic injection and individual throttle bodies
200 PS at 6,750/min in the early road version
240 Nm maximum torque
up to 300 PS at 8,200/min in the first 2.3-litre racing version

Sources and editorial notes

Output figures relate to the respective European versions named. Depending on model year, market, emissions control and homologation status, differing values exist.

Text: Sven H. Editorial review, fact-checking and image selection: s14.de. All sources accessed and cross-checked on 9 August 2026.
